Airflow integration

This page lists the Airflow integration's tools and how to configure it.

Tools

Tool Name	Description	Parameters
airflow_get_task_log	Get logs for a specific Airflow task instance.	- dag_id (string): The ID of the DAG - dag_run_id (string): The ID of the DAG Run - task_id (string): The ID of the task - try_number (number): The try number of the task instance
airflow_list_dags	List all DAGs in Airflow.	- limit (number, optional): Number of results per page - offset (number, optional): Page offset
airflow_get_dag	Retrieve a specific DAG by ID.	- dag_id (string): The ID of the DAG
airflow_update_dag	Update a DAG (e.g., pause/unpause)	- dag_id (string): The ID of the DAG - is_paused (boolean): Set to true to pause the DAG
airflow_list_dag_runs	List DAG runs for a specified DAG ID.	- dag_ids (array, optional): Dag Ids - order_by (string, optional): Order By - page_offset (number, optional): Page Offset (optional, default 0) - page_limit (number, optional): Page Limit (optional, default 100) - states (array, optional): States - run_after_gte (string, optional): Run After Gte - run_after_lte (string, optional): Run After Lte - logical_date_gte (string, optional): Logical Date Gte - logical_date_lte (string, optional): Logical Date Lte - start_date_gte (string, optional): Start Date Gte - start_date_lte (string, optional): Start Date Lte - end_date_gte (string, optional): End Date Gte - end_date_lte (string, optional): End Date Lte
airflow_create_dag_run	Create a new DAG run for a specified DAG ID.	- dag_id (string): ID of the DAG - dag_run_id (string, optional): Dag Run Id - data_interval_start (string, optional): Data Interval Start - data_interval_end (string, optional): Data Interval End - logical_date (string, optional): Logical Date - run_after (string, optional): Run After - conf (record, optional): Configuration parameters for the DAG run - note (string, optional): Note
airflow_update_dag_run	Update an existing DAG run.	- dag_id (string): ID of the DAG - dag_run_id (string): ID of the DAG run - state (string, optional): New state for the DAG run - note (string, optional): Notes to add to the DAG run
airflow_get_upstream_asset_events	Get upstream asset events for a specific run id.	- dag_id (string): The ID of the DAG - dag_run_id (string): The ID of the DAG Run
airflow_list_dag_tasks	List all tasks in a specific DAG.	- dag_id (string): ID of the DAG
airflow_get_dag_task	Retrieve a specific task in a DAG.	- dag_id (string): ID of the DAG - task_id (string): ID of the task
airflow_list_task_instances	List task instances using the batch endpoint.	- dag_ids (array, optional): Dag Ids - dag_run_ids (array, optional): Dag Run Ids - task_ids (array, optional): Task Ids - state (array, optional): State - run_after_gte (string, optional): Run After Gte - run_after_lte (string, optional): Run After Lte - logical_date_gte (string, optional): Logical Date Gte - logical_date_lte (string, optional): Logical Date Lte - start_date_gte (string, optional): Start Date Gte - start_date_lte (string, optional): Start Date Lte - end_date_gte (string, optional): End Date Gte - end_date_lte (string, optional): End Date Lte - duration_gte (number, optional): Duration Gte - duration_lte (number, optional): Duration Lte - pool (array, optional): Pool - queue (array, optional): Queue - executor (array, optional): Executor - page_offset (number, optional): Page Offset (optional, default 0) - page_limit (number, optional): Page Limit (optional, default 100) - order_by (string, optional): Order By
airflow_get_task_instance	Retrieve a specific task instance in a DAG run.	- dag_id (string): ID of the DAG - dag_run_id (string): ID of the DAG run - task_id (string): ID of the task
airflow_update_task_instance	Update state and notes of a specific task instance.	- dag_id (string): ID of the DAG - dag_run_id (string): ID of the DAG run - task_id (string): ID of the task - map_index (number, optional): Map index of the task instance (default -1) - new_state (string, optional): New state for the task instance - note (string, optional): Notes to add to the task instance - include_upstream (boolean, optional): Include Upstream (default false) - include_downstream (boolean, optional): Include Downstream (default false) - include_future (boolean, optional): Include Future (default false) - include_past (boolean, optional): Include Past (default false)
airflow_create_asset_event	Create a dataset asset event to trigger downstream DAGs.	- asset_id (number): Asset Id that was updated - extra (record, optional): Additional metadata about the event

Configuration

The Airflow integration uses the Airflow 3 REST API (/api/v2).

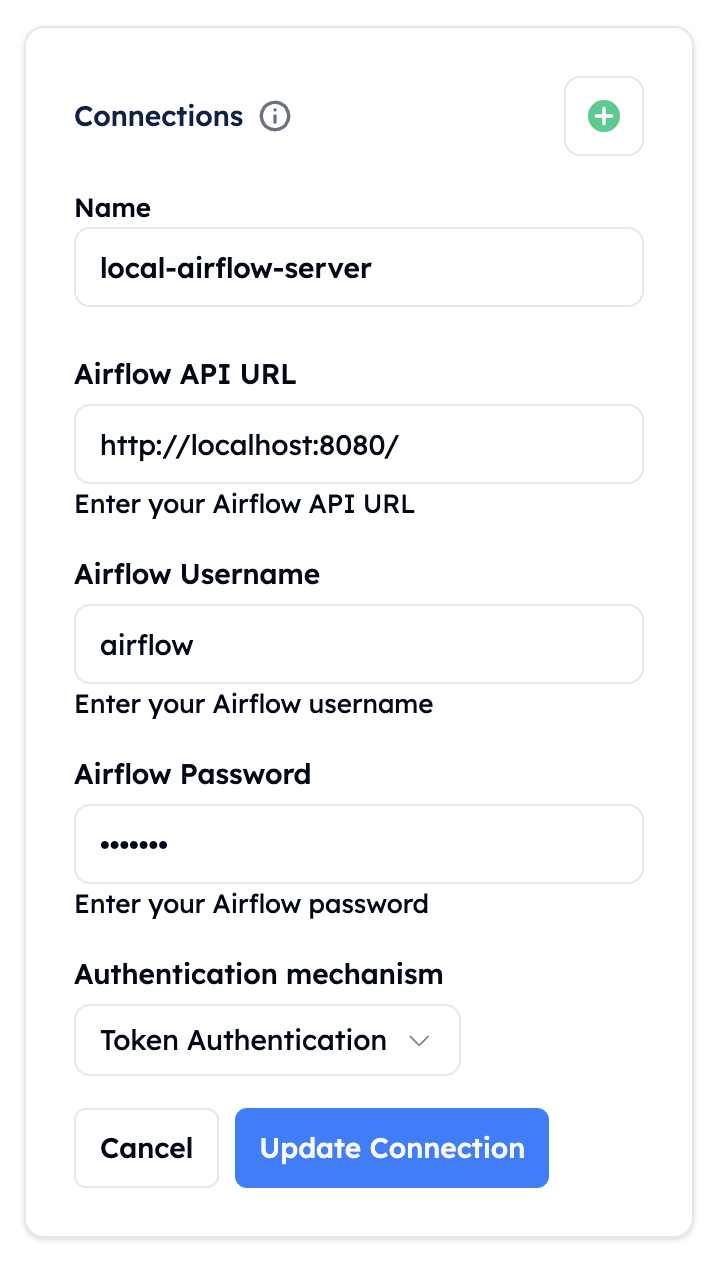

Setting	What to enter
Airflow API URL	Your Airflow server's address, such as https://airflow.example.com, without /api/v2
Airflow Username and Airflow Password	The Airflow user the agent signs in as. Give it only the permissions the tools need.
Authentication mechanism	Token Authentication or Basic Authentication

• Token Authentication signs in at your server's /auth/token endpoint with the username and password, and uses the token Airflow returns. Airflow 3 provides this endpoint, so there's no separate API token to create.
• Basic Authentication sends the username and password with every request. Use it only if your Airflow accepts basic authentication for its API.

For more details about Airflow authentication, refer to the official Airflow documentation.
